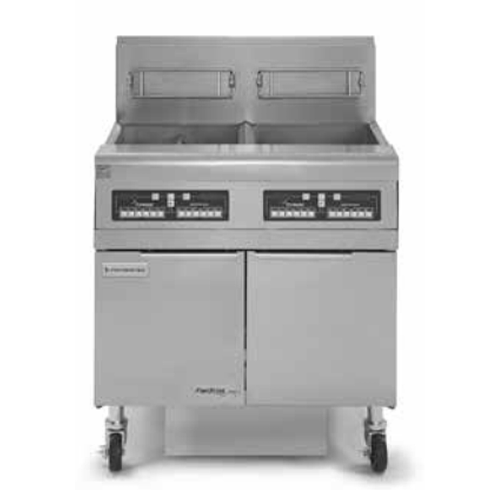

Frymaster FPH255 High-Efficiency Gas Freestanding Fryer with Filtration Double Tank 4 Basket 2 x 25 Litres

Frymaster High-Efficiency Gas Freestanding Fryer with Filtration Double Tank 4 Basket 2 x 25 Litres

Designed for high capacity frying, efficiency and trouble-free filtering of fryer batteries without wasting valuable space

Frymaster’s H55 is a premium open-pot fryer that combines state-of-the-art technology with decades of frying experience and customer satisfaction to set the standard for high-efficiency frying. The H55 fryer saves thousands of dollars annually on energy costs. H55 fryers have long been the trusted choice of chains and independent operators worldwide because their efficient, state-of-the-art heat transfer system, precise controls and durability have stood the test of time. Infrared burners and blower system delivers an ultra-refined air-gas mixture so the fryer operates well in any gas application such as at high altitudes, in environments where air circulation is sub-optimal or when the heating value of the gas is diminished.

Frymaster’s renowned, built-in filtration system puts filtration where it’s most convenient to use -- right within the fryer battery -- eliminating the need for additional floor and storage space.

The filtering process is fast and easy, encouraging frequent filtering -- a critical part of maximizing oil life, especially with trans-fat free oils. It is also sequential, so one fryer may be filtered while the others are still in use. It is engineered with features that allow added convenience, easier serviceability and allows for using three different filter mediums with one pan. This system is enhanced with a gravity draining system that allows residual oil to drain into the filter pan so that drain lines are always open. The filter, housed beneath two Frymaster fryers or one fryer and a spreader, is capable of filtering up to six fryers, individually, without having to be moved from fryer to fryer, saving valuable labor. One fiftypound fryer can be filtered in about four minutes, while other fryers in the battery keep on cooking. Large sump with secure hold-down ring ensures proper vacuum and superior oil filtration. The stainless steel filter pan slides out easily over floor mats and uneven floor tiles

Fryer Features:

• Open-pot design (split or full) is easy to clean
• 25 L oil capacity per full frypot; 12 L per split frypot
• 71,700 Btu/hr. input (18,060 kcal) (21 kw) per full frypot; 34,150 Btu/hr. input (8,602 kcal) (10 kw) per split frypot
• Frying area: 14” x 15” x 4-1/2” (35.6 x 38.1 x 11.4 cm)
• Digital controller included
• Stainless steel frypot, door and cabinet
• Center-mounted, RTD, 1° compensating temperature probe
• Deep cold zone with forward-sloping bottom and IPS full-port, ball-type drain valve -- 1-1/4” (full frypot; 1” (split frypot)
• Infrared burners ensure state-of-the-art heat transfer
• Electronic ignition
• Automatic melt cycle and boil-out temperature control
• Two twin baskets per frypot
• Casters
• Built-in filtration
• Drain safety switch
• Rear oil flush

Filter Features:

• 25 litre oil capacity per tank
• Space-saving filter which fits inside fryer cabinet housing
• Filter pan designed on rails to clear floormats for easy cleaning
• Sloped drain pan leaves minimal residue oil behind after filtering
• Large 3” (8.0 cm) round drain line allows oil to drain freely
• Filter cycle is complete from start to finish in less than 5 minutes, while other frypots in the system are in use
• Filters up to 6 fryers in one battery
• 1/3 H.P. filter motor
• 4 GPM (15 LPM) pump
• Stainless steel crumb catcher
• Filter starter kit
